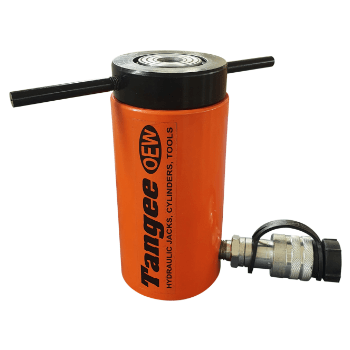

single acting cylinders with lock nut load return with reduced collapsed height 700kg
- Single acting, load return.
- Safety lock nut for mechanical load holding.
- Over flow port functions as a stroke limiter.
- Hard chrome plated steel piston rod.
- Female half coupler & dust cap provided on all models.
- Swivel saddle with 3°-5° swivel angel available on request.
- Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets.
- All variations are possible on request, subject to confirmation from the dealer.
| CAPACITY | 50 TONNE TO 1000 TONNE |
|---|---|
| STROKE | 50 MM TO 300 MM |
| TYPE OF RAM | SCREWED |

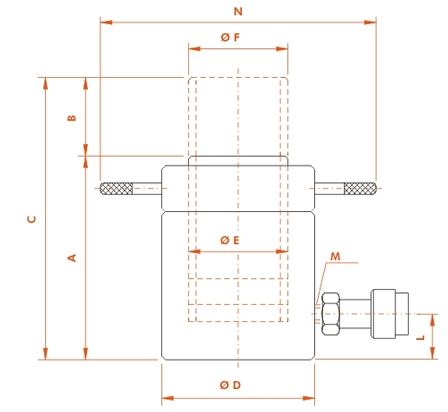

Mechanical Drawings
