Single Acting Cylinders with Lock Nut and Spring Return (700Kg/Cm2)
- Heavy duty general purpose versatile Jack / Ram / Cylinder with screwed ram and lock nut to provide position load holding for extended period of time.
- The springs are not designed to retrace the piston rod in horizontal position or with any external load.
- Hard chrome plated steel piston rod.
- Stop ring provided on all models.
- Female half coupler & dust cap provided on all models.
- Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets. All variations are possible on request, subject to confirmation from the dealer.
| CAPACITY | 5 TONNE TO 200 TONNE |
|---|---|
| STROKE | 50 MM TO 250 MM |
| TYPE OF RAM | SCREWED |

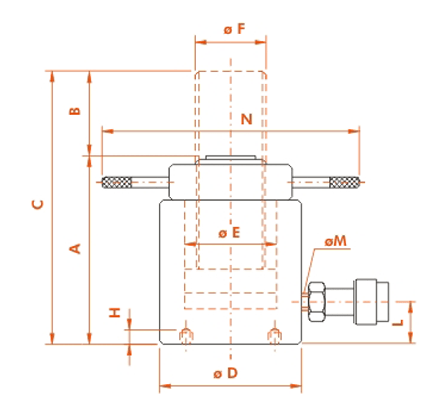

Mechanical Drawings

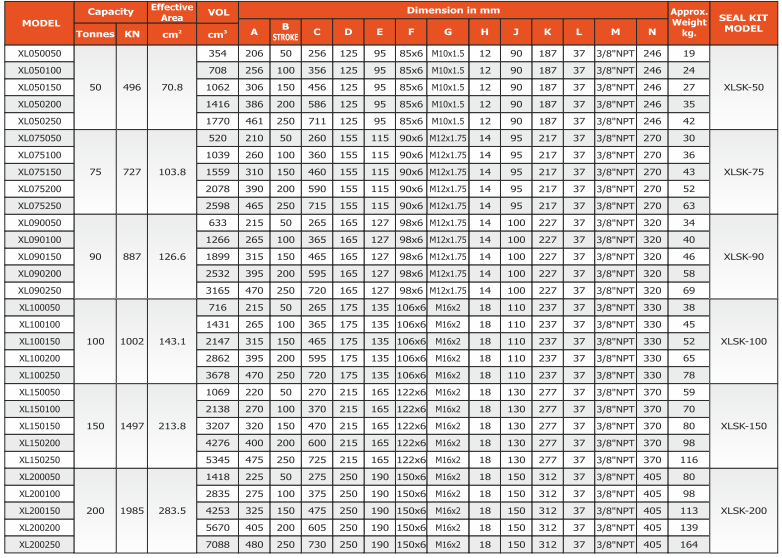

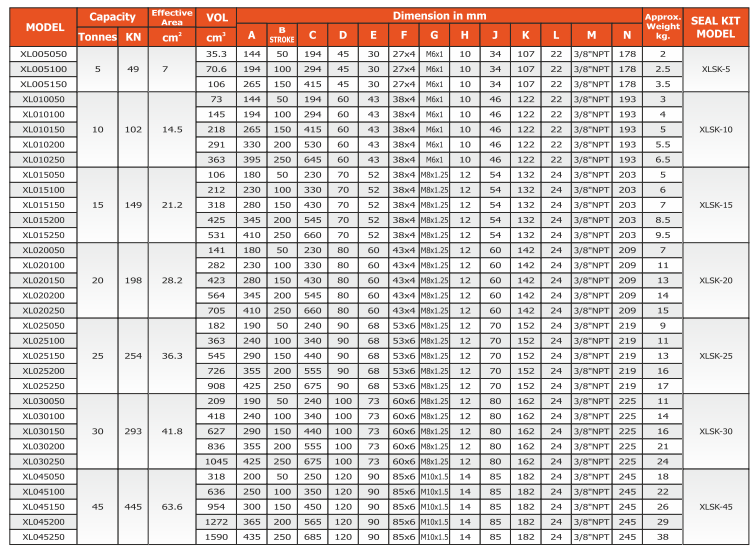

Dimensions Charts
