Single Acting Cylinders Load Return (High Capacity) (700Kg/Cm2)

single acting cylinders - OEW
  1. Heavy duty Jack/Ram/Cylinder for higher loads where retracing need not be spring assisted.
  2. Hard chrome plated steel piston rod.
  3. Stop ring provided on all models. For models above 200 tonne capacity, additional over flow port provided.
  4. Female half coupler & dust cap provided on all models.
  5. Swivel saddle with 3°-5° swivel angel available on request for 50 tonne & above hydraulic cylinders.
  6. Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets. All variations are possible on request, subject to confirmation from the dealer
CAPACITY200 TONNE TO 2000 TONNE
STROKE150 MM TO 300 MM
TYPE OF RAMPLAIN
Mechanical Drawings

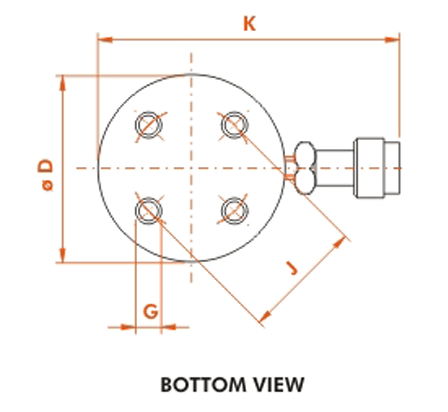

Single-Acting-Cylinders-Load-Return-Diagram-2
Single-Acting-Cylinders-Load-Return-Diagram-1
Dimensions Chart
