Single Acting Cylinders Load Return (700Kg/Cm2)
- Heavy duty Jack/Ram/Cylinder for higher loads where retracing need not be spring assisted.
- Collar threads and base mounting holes enable easy fixturing upto 200 tonne jacks.
- Hard chrome plated steel piston rod.
- Stop ring provided on all models. For models above 200 tonne capacity, additional over flow port provided.
- Female half coupler & dust cap provided on all models.
- Swivel saddle with 3°-5° swivel angel available on request for 50 tonne & above hydraulic cylinders.
- Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets. All variations are possible on request, subject to confirmation from the dealer.
| CAPACITY | 5 TONNE TO 150 TONNE |
|---|---|
| STROKE | 50 MM TO 350 MM |
| TYPE OF RAM | PLAIN |

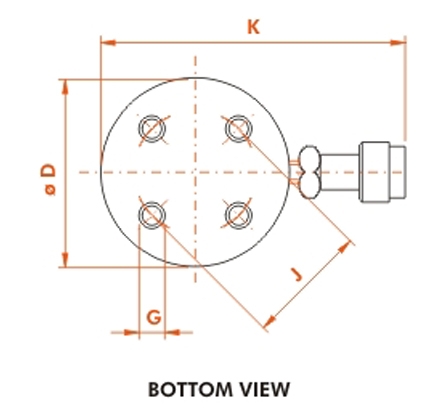

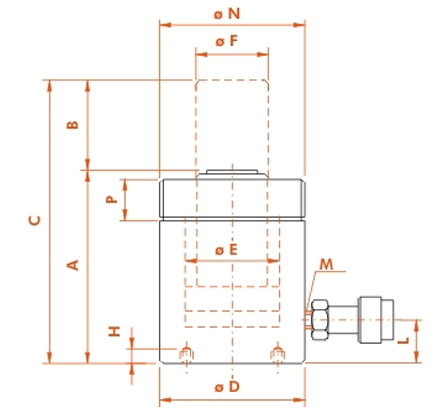

Mechanical Drawings

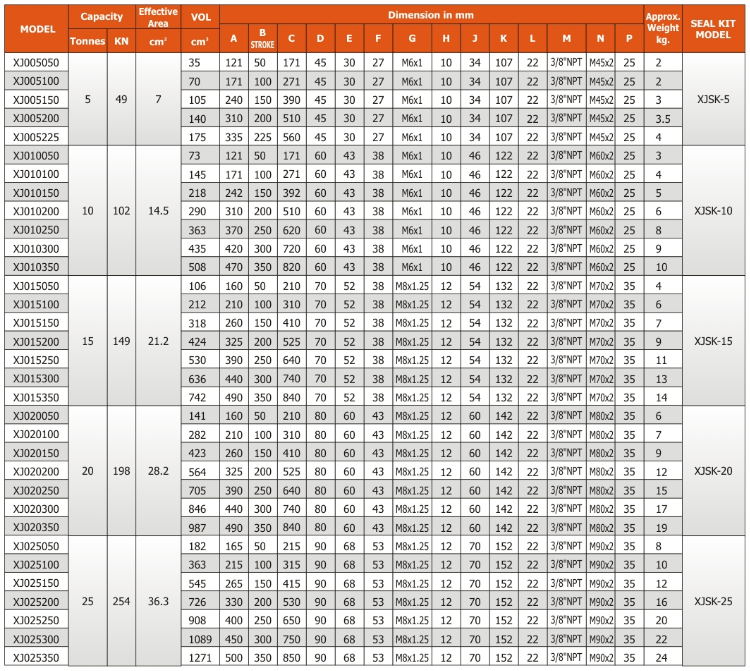

Dimensions Charts
