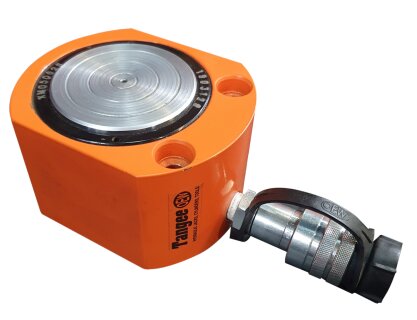

Low Height Flat Cylinders Single Acting Spring return (700Kg/Cm2)
- Flat Jacks incorporate the optimum stroke in the minimum
closed height to give lifting force in confined places of work. Strokes being very limited and the area of working being almost inaccessible, mounting bolt holes are provided for positive fixturing. - Hard chrome plated steel piston rod.
- Stop ring provided on all models.
- Female half coupler & dust cap provided on all models.
- Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets. All variations are possible on request, subject to confirmation from the dealer.
| CAPACITY | 5 TON TO 200 TON |
|---|---|
| STROKE | 5 MM TO 25 MM |
| TYPE OF RAM | PLAIN |
Mechanical Drawings

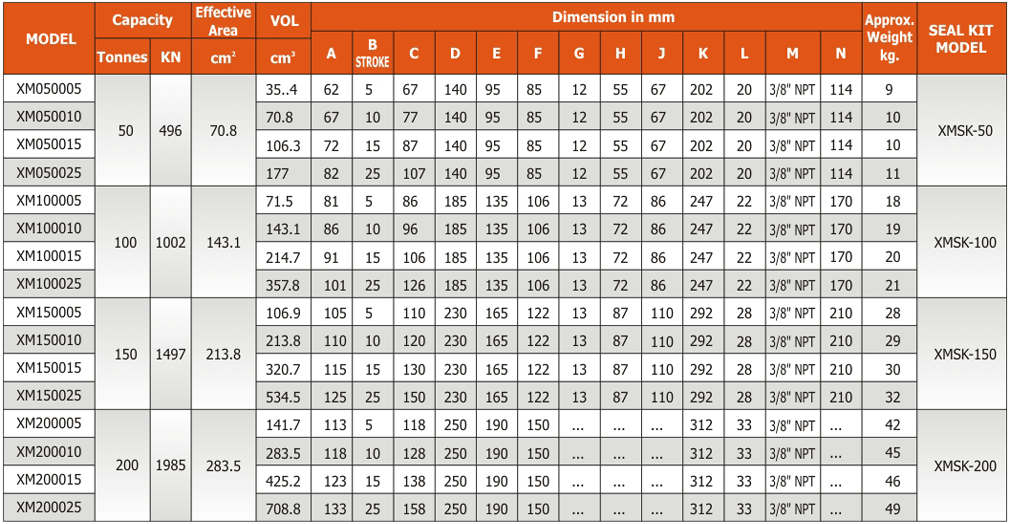

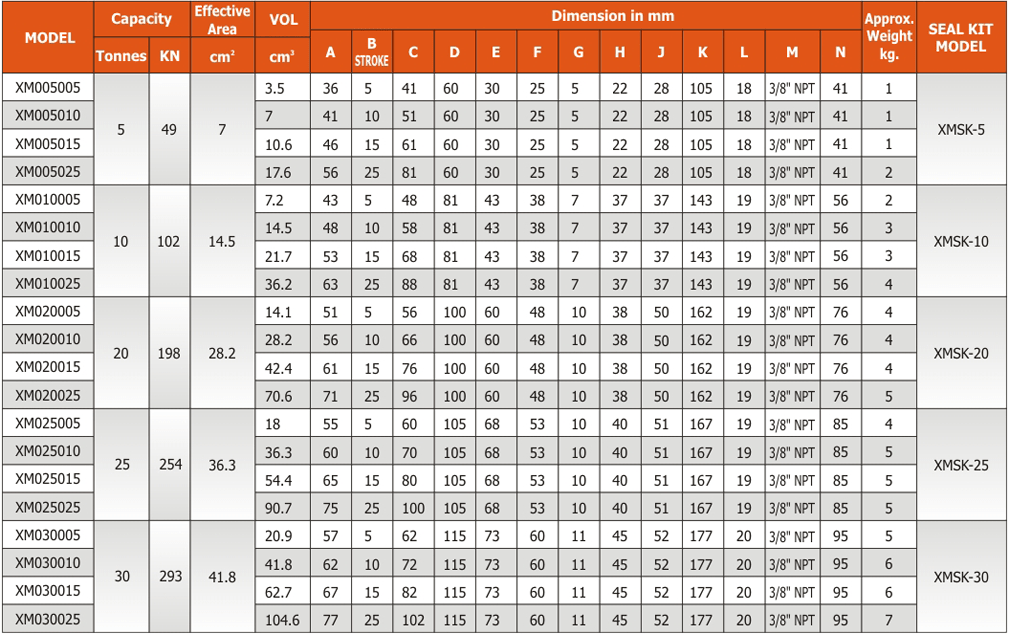

Dimensions Charts
