Double Acting Screwed Ram Lock Nut Cylinders)
- Heavy duty Jack/Ram/Cylinder for higher loads.
- These cylinder are oil return. They are suitable for quick retracing.
- Hard chrome plated steel piston rod
- Safety lock nut for mechanical load holding.
- Stop ring provided on all models. For models above 200 tonne capacity, additional over flow port provided.
- Female half coupler & dust cap provided on all models.
- Swivel saddle with 3°-5° swivel angel available on request.
- Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets. All variations are possible on request, subject to confirmation from the dealer.
| CAPACITY | 50 TONNE TO 1000 TONNE |
|---|---|
| STROKE | 150 MM TO 300 MM |
| TYPE OF RAM | THREADED |

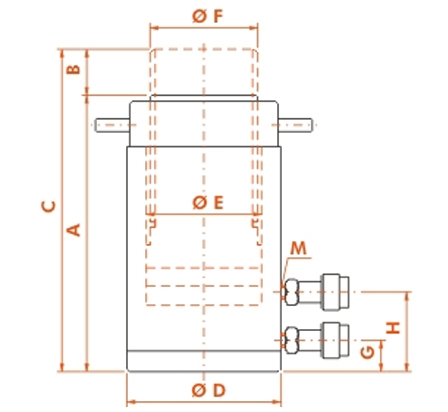

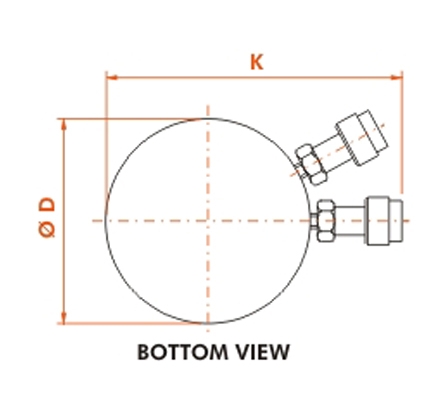

Mechanical Drawings
Dimensions Chart
