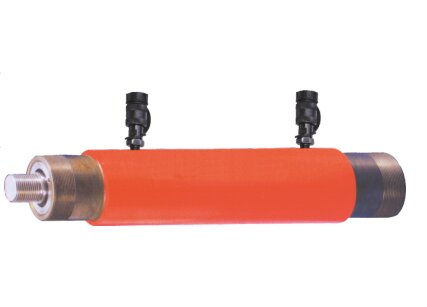

Double Acting Precision Production Cylinder (700Kg/Cm2)
- Versatile Jack/Ram/Cylinders with threading on both ends of the body as well as piston rod. Variety of mountings are also provided for easy and quick installation of the cylinder. These cylinders are double acting.
- Hard chrome plated steel piston rod.
- Female half coupler & dust cap provided on all models.
- Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets. All variations are possible on request, subject to confirmation from the dealer.
| CAPACITY | 5 TONNE TO 25 TONNE |
|---|---|
| STROKE | 25 MM TO 250 MM |
| TYPE OF RAM | PLAIN |

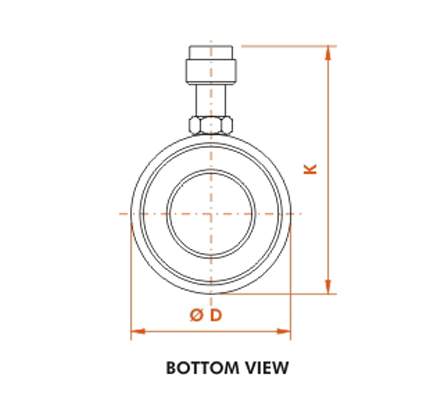

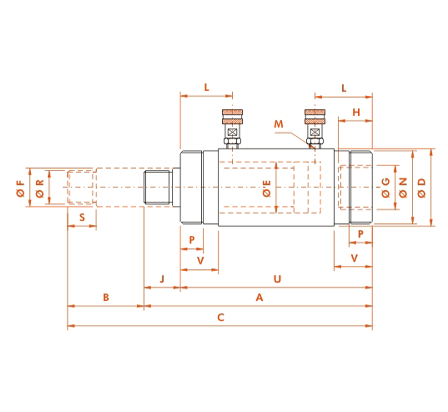

Mechanical Drawings

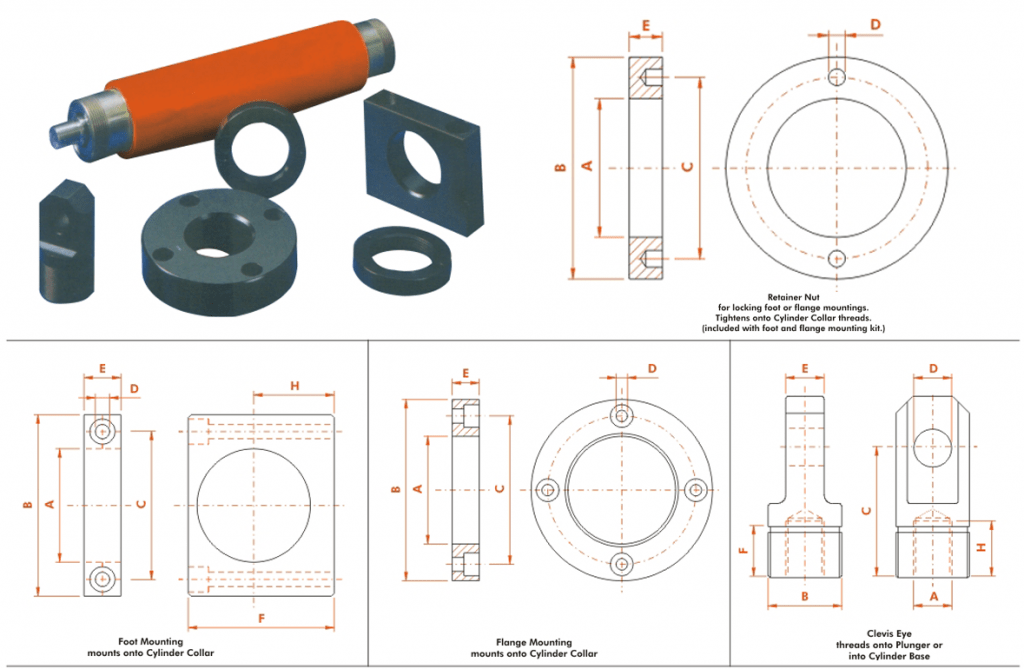

Attachements For YP Series Precision Production Cylinders (700Kg/Cm2)

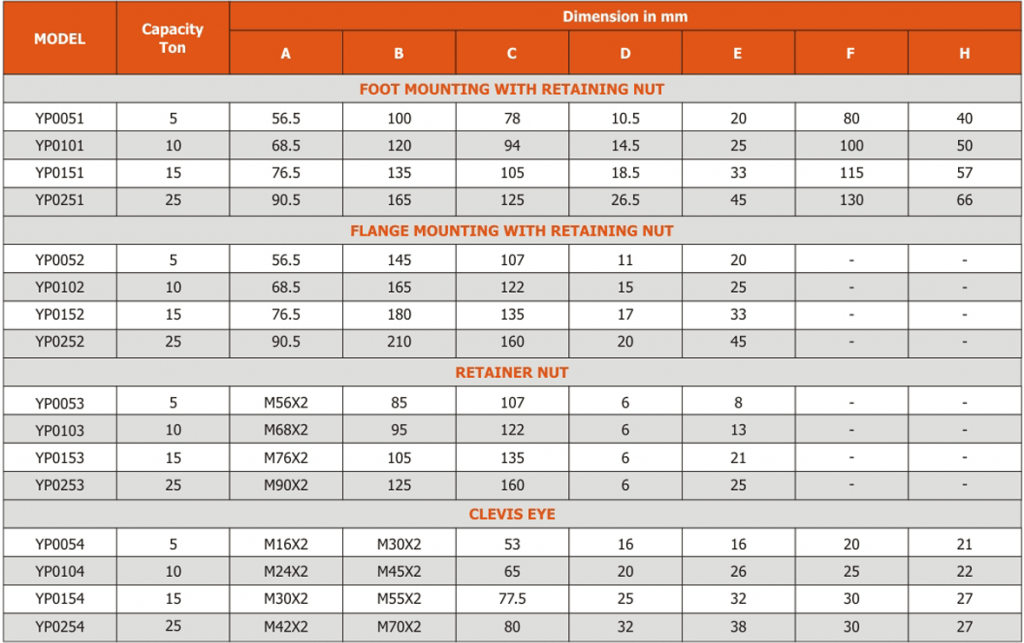

Dimensions Chart
