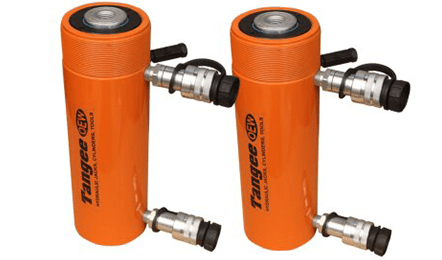

Double Acting Cylinders (700Kg/Cm2)

1. Heavy duty oil return Jacks/Rams/Cylinders for quick retracing, horizontal, vertical and inverted operations. Suitable loads may be attached to the piston rod as well, if required. Double acting cylinders are designed to operate in both pushing and pulling directions under pressure.
2. Collar threads and base mounting holes enable easy fixturing.
3. Hard chrome plated steel piston rod.
4. Safety valve in retract side of cylinder helps to prevent damage in case of accidental overpressurization.
5. Female half coupler & dust cap provided on all models.
6. Swivel saddle with 3°-5° swivel angel available on request for 50 tonne & above hydraulic cylinders.
7. Please contact nearest dealer for cylinders with capacities & strokes not mentioned in the data sheets. All variations are possible on request, subject to confirmation from the dealer.

CAPACITY	5 TONNE TO 2000 TONNE
STROKE	50 MM TO 300 MM
TYPE OF RAM	PLAIN

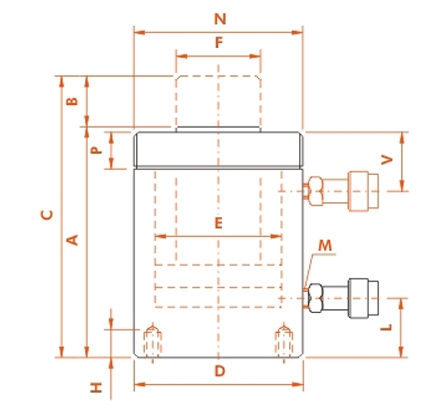

Mechanical Drawings

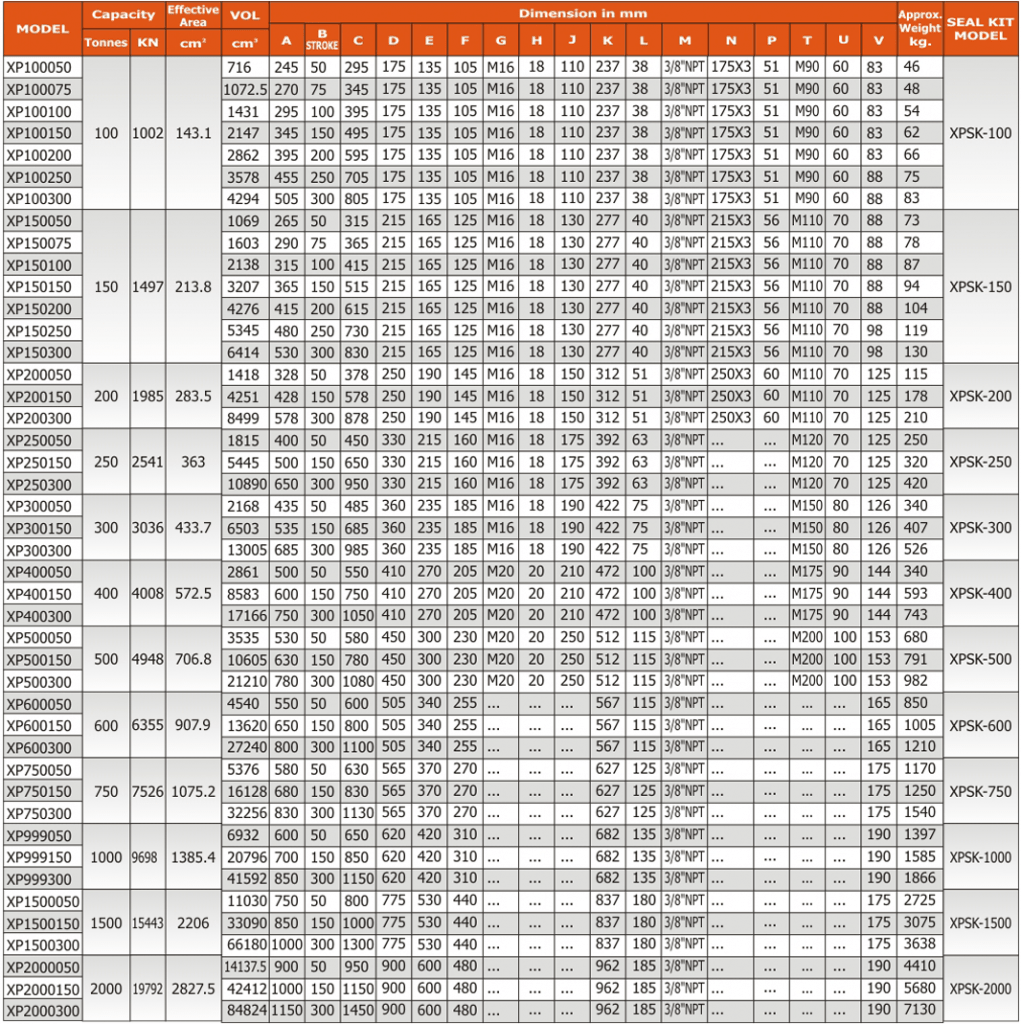

Dimensions Chart
